WayPonDEV NanoPi NEO3-LTS Mini Router Single Board Computer Rockchip RK3328 1GB Super Tiny ARM Board for IOT Smart Home Gateway Support FriendlyWrt Ubuntu (with Case and Heat Sink)
4.4 (149 items)
Limited Time SaleUS$21.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209085102 | Release Date | 2026/03/29 | List Price | US$14.40 | Model Number | 209085102 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

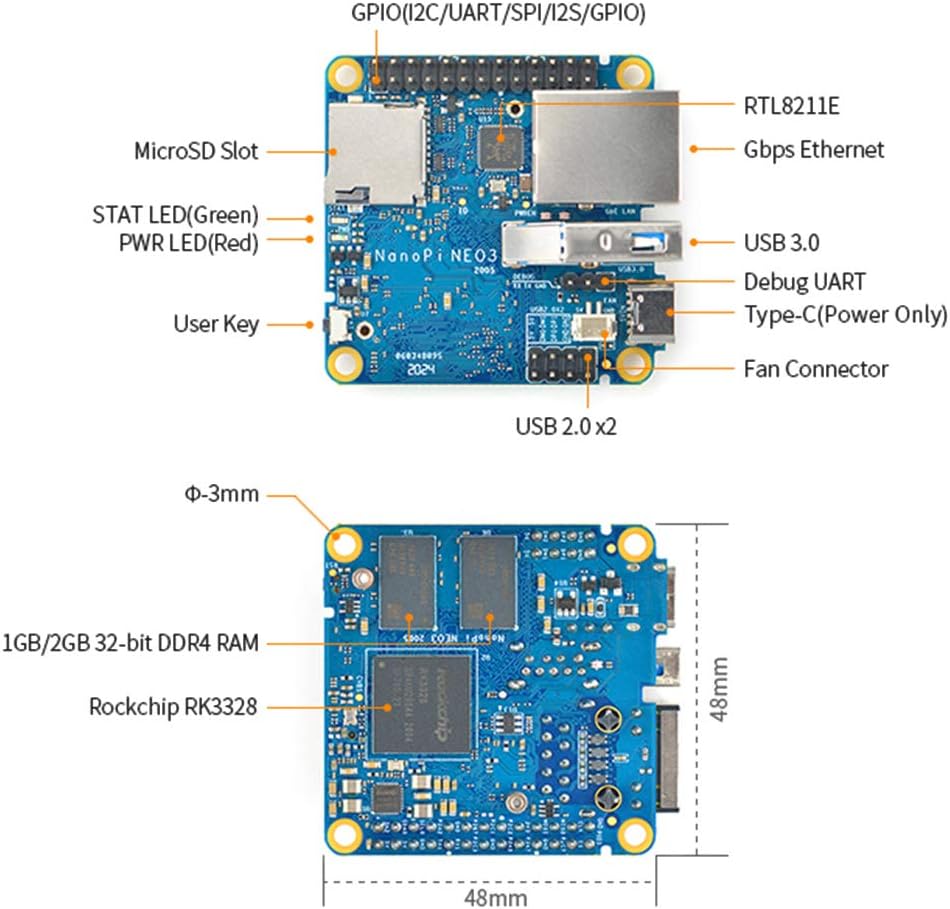

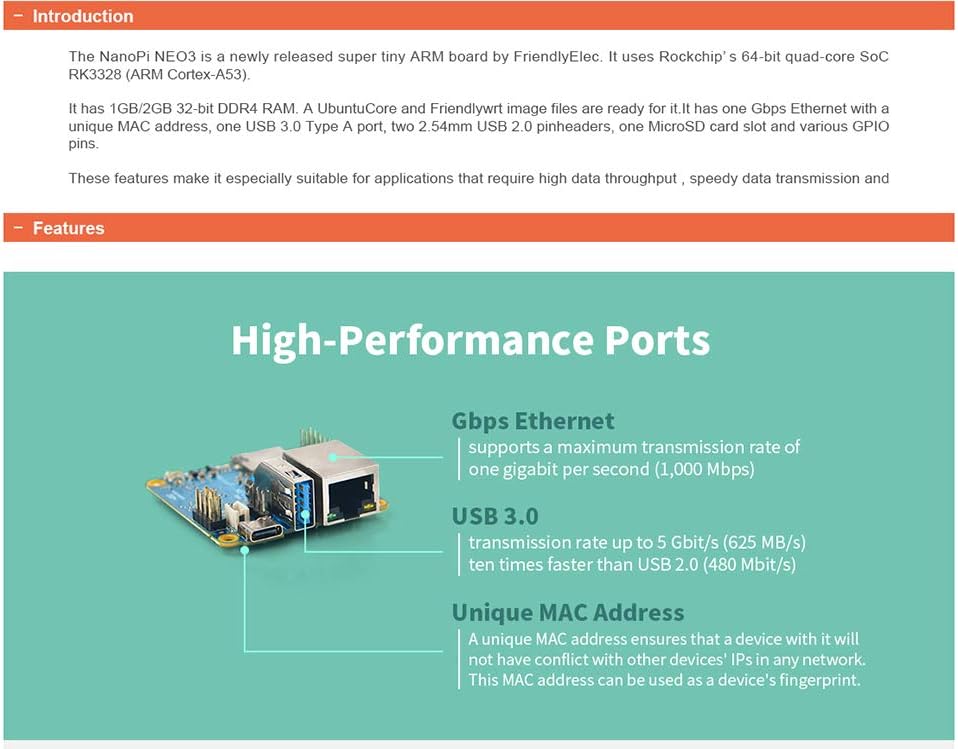

The NanoPi NEO3-LTS is a newly released super tiny ARM board by FriendlyElec. lt uses Rockchip's 64-bit quad-core SoCRK3328(ARM Cortex-A53).These features make it especially suitable for applications that require high data throughput , speedy data transmission andhigh performance. Hobbyists and makers will just love it.-Specification-CPU Model: Rockchip RK3328Number of Cores: Quad-Core Cortex-A53 64-bitFrequency: 4 x Cortex-A53 Up to 1.3GHzMemory RAM: 1GB 32-bit DDR4Storage:MicroSD Slot: MicroSD x1 for external storage up to 128GBConnectivity Ethernet: Gbps Ethernet x1 with unique MACUSB: USB 3.0 Host x1: USB Type A; USB 2.0 Host x2: 2.54mm 4x2pin-header; Type-C x1: Power Input OnlyPin-header: GPIO: 2.54mm pitch 26pin-header, include I2C, UART, SPI, I2S, GPIO; Serial Debug Port x1: 2.54mm pitch 3pin-header, 115200bpsLED: PWR LED(Red) x1; STAT LED(Green) x1Button: User button x1Working Temperature -20℃ to 70℃Power: 5V/1A, via Type-C or GPIO-OS Support- FriendlyWrt 21.02.1 (64-bit)FriendlyCore Focal Lite (Base on Ubuntu 20.04)-Dimension-PCB: 6 LayerWeight: 22gSize: 48x48 mm-Package Content-1x Nanopi NEO3 1GB Mini Router- (with unique MAC Chip)-Technical Support-Wiki:youyeetoo.com/blog/nanopi-neo3ys00114-ys00117-58.Please click "WayPonDEV" and ask a question or monica#smartfire.cn (f------>@) skype: monica_9122.Please leave the message in our forum by " forum.youyeetoo.com/ ".
- [Unique MAC Address] A unique MAC address ensures that a device with it will not have conflict with other devices' IPs in any network. This MAC address can be used as a device's fingerprint.
- [Light & Full-speed Gigabit]---It features high speed data transmission and perfectly suits loT applications that require both high quality data transmission and small form factor
- [GPIO Programming Libraries, Ready to Go]---GPIO: 2.54mm pitch 26pin-header, include I2C, UART, SPI, I2S, GPIO; Serial Debug Port x1: 2.54mm pitch 3pin-header, 115200bps.
- [OS & Software]---Support FriendlyWrt 21.02.1 (64-bit) and FriendlyCore Focal Lite (Base on Ubuntu 20.04)
| Brand | WayPonDEV |
|---|---|
| Model Name | NanoPi NEO3-LTS Mini Router |
| Manufacturer | WayPonDEV |
| Model Number | Rockchip RK3328 2GB RAM |
| BuiltIn Media | Case and Heat Sink, unique MAC Chip |
| Item Type Name | Mini Router; Single Board Computer |
| Mfr Part Number | B0B8MRJDSK_CA NARF |
| Processor Brand | Rockchip |
| Processor Count | 4 |
| Total Usb Ports | 3 |
| Operating System | Linux |
| RAM Memory Installed | 1 GB |
| Wireless Compability | 802.11b |
| RAM Memory Technology | DDR4 |
| Memory Storage Capacity | 128 GB |
