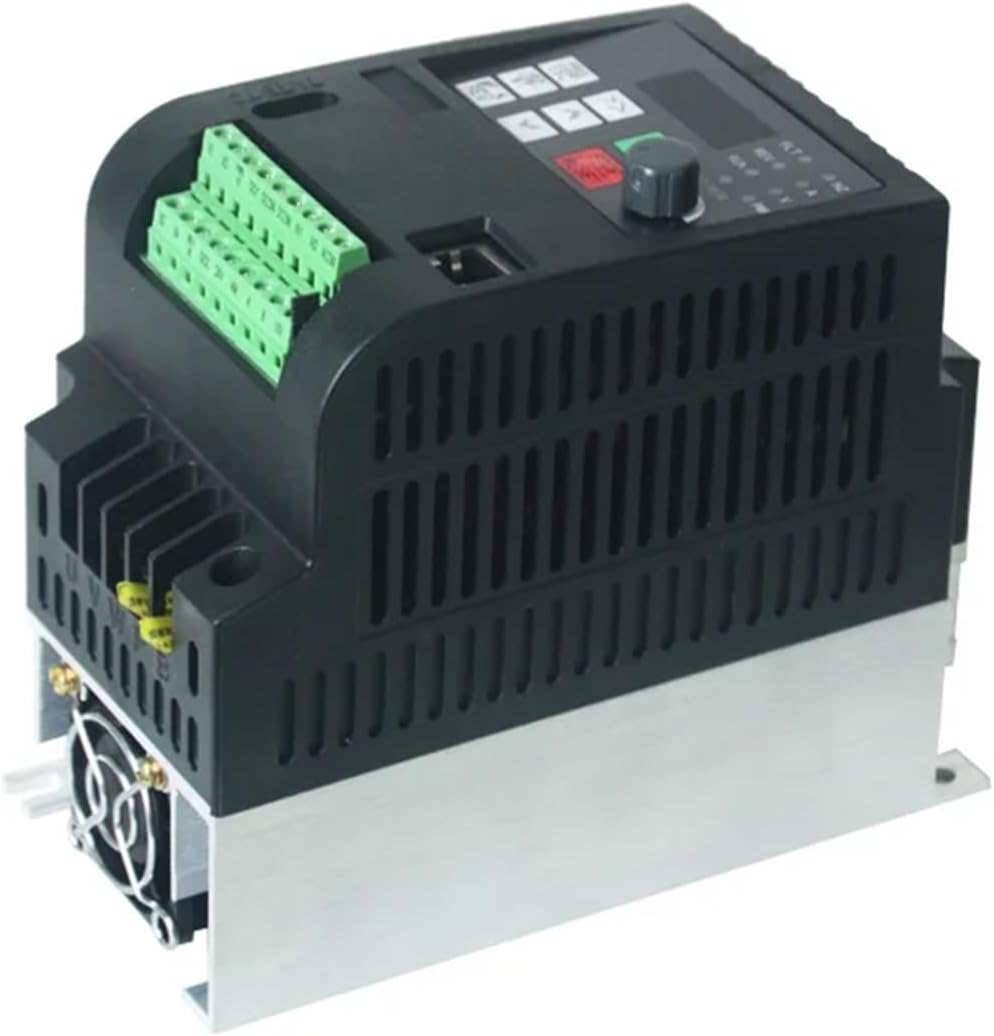

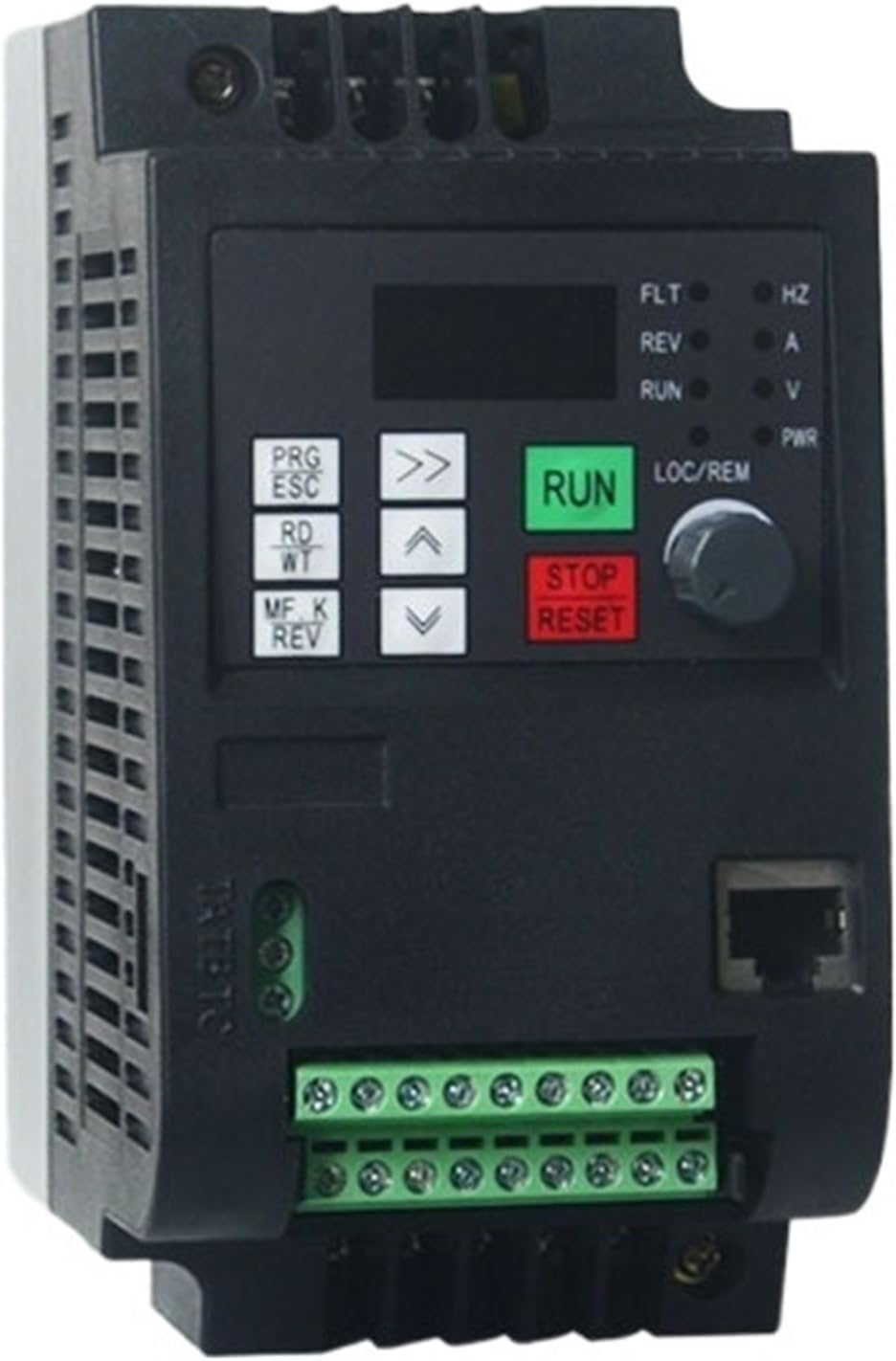

1Pcs AC 220V 5.5KW Or DC200-400V Input VFD Solar Frequency Inverter 3Phase 220V Output Motor Speed Control Frequency Drive Converter(Solar 1.5kw 7A)

Frequency InverterAC 220V 5.5KW Or DC200-400V Input VFD solar Frequency Inverter 3Phase 220V Output Motor Speed Control Frequency Drive ConverterSupplementaryNote:The main circuit terminals R S T are threephase AC input (220V is R T), P+ and N are PV DC input; when input AC, DC must be disconnected and cannot be powered at the same time.Set the parameters p0-20=20, P1-00=3 or 4, single-phase motor mode, output V, W to connect to a single-phase 220V motor.Solar panel configuration recommendations:220V solar inverter input DC 320V-350V, the best working voltage DC320V, 380V solar inverter input DC 540V-580V, the best working voltage DC540V,The total power of the solar panel is 1.5 times the power of the motor.The WK600D series solar inverter system is newly upgraded, with additional functions that can drive single-phase motors. Set parameters P0-20=20, P1-00=3, single-phase motor mode 1. Or P1-00=4, single-phase motor mode 2.A.Terminalwiringdiagramofourproductswiring diagram 220V 0.75KW-2.2KW220V 0.75KW220V 1.5KW220V 2.2KWModel NO.WK600D-0007-D1TWK600D-0015-D1TWK600D-0022-D1TInput voltageDC 280V-380V (best for 300V-320V) or Single phase 220V±10% 50/60HzOutput voltageSingle phase 220V or Three phase 0-220V 0-650HzPower0.75KW/1HP1.5KW/2HP2.2KW/3HPRated current3.7A7A10AShape size155*82*135 mmpacking size220*150*130 mmWeight1.2KGwiring diagram 220V 4KW220V 4KWModel NO.WK600D-0040-D1TInput voltageDC 280V-380V (best for 300V-320V) or Single phase 220V±10% 50/60HzOutput voltageSingle phase 220V or Three phase 0-220V 0-650HzPower4KW/5HPRated current16AShape size170*130*160 mmpacking size225*190*230 mmWeight2KGwiring diagram 220V 5.5KW-7.5KW220V 5.5KW220V 7.5KWModel NO.WK600D-0
